Stainless Steel Bag Filter Housing

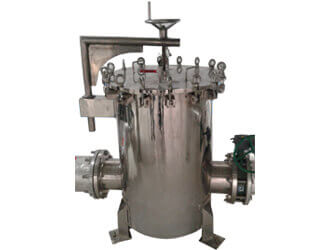

Bag Filter Housing

PFP designed and manufactured Bag Filter Housings and vessels in accordance with Pharmaceutical GMP requirement and Fabrication Standards. All Designs are customized to meet user requirement.

Features and MOC

Used for High Viscosity liquid Filtration
Designed for large volume operation - High Flow rate
Economical and easy to Handle
Filter bags of PP / Nylon and other fabrics can be used
High Dirt Holding Capacity

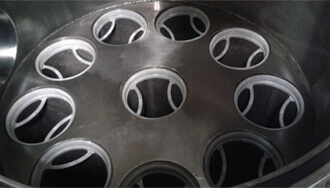

Multi Bag Design
Customized size and design as per requirement

Material of Construction

Housing is designed and fabricated in SS or MS or other metal as desired.
They are available in PP and FRP also
Bag Filter Housing assembly consist of - Housing + Inner Cage + Filter bag + Sealing arrangement for bag to stay in place at high pressure.
Solids are collected in filter bags which can be easily cleaned and replaced
Suitable to be used with Filter bags with PP Collar or SS Ring
Filter housing are designed as per ASTME Standard

Application

Paints
Chemicals
Water
Coolants

Resins
Pharmaceuticals
Sugar syrup

Polymers
Oil etc
Sizes

Bag filter system suitable for

Ø 4" x 10" Long Filter Bag
Ø 4" x 16" Long Filter Bag
Ø 7" x 16" Long Filter Bag
Ø 7" x 32" Long Filter Bag

The above sizes can be designed for multiple bag Filter also up to 16 or more
Flow Rate
Capacity : Up to 2000 m3 / hr

End connections available

NPT / BSP Threaded
Flanged Table E / Table F
ANSI B 16.5 Flanged
DIN Standard
Tri Clover Adaptors
